ZERO POINT

All fixtures immediate set-up!
Reduce set up times by up to 95% and increase profits

The Gerardi ZERO POINT modular system is the easiest and most cost effective way to reduce down time and increase profits.

It can be used on machines bed with interface plates, on 5 axis machine or on tombstones.

FEATURES

Zero Point 0 1 2 4 3 6 5

SAVING ON FIXTURES

Head plates, tombstones and modular vises set up for Zero Point

MINIMUM MACHINE SET UP TIMES

PRODUCTION OPTIMIZATION

PULL-STUD

For the clamping and positioning of the fixtures, or directly the workpiece.

SINGLE PNEUMATIC Type 2

Mounting with FLANGE

SINGLE PNEUMATIC Type 1

BUILT-IN mounting

PNEUMATIC Type 2

BUILT-IN mounting


Specifications
  • Art.662 Type 2Hydraulic
  • Art.663 Type 3Hydraulic
  • Art.664 Type 4Single Pneumatic
  • Art.665 Type 2Single Pneumatic
  • Art.664s Type 2Single Pneumatic
  • Art.664s Type 2Single Pneumatic
  • Art.664 Type 1Pneumatic
  • Art.665 Type 1Pneumatic

VIDEO
  • Pneumatic Zero Point System
  • Accuracy
  • Zero Point

Range
  • Art.662 Type 2Art.662 Type 2
    HYDRAULIC
    Independent Mounting
    25kN
  • Art.663 Type 2Art.663 Type 2
    HYDRAULIC
    Built-in Mounting
    25kN
  • Art.662 Type 2Art.662 Type 2
    PNEUMATIC
    Mounting with flange
    up to 18kN
  • Art.665 Type 2Art.665 Type 2
    PNEUMATIC
    Built-in Mounting
    up to 18kN
  • Art.664S Type 2Art.664S Type 2
    SINGLE PNEUMATIC
    Mounting with flange
    up to 18kN
  • Art.665S Type 2Art.665S Type 2
    SINGLE PNEUMATIC
    Built-in Mounting
    up to 18kN
  • Art.664 Type 1Art.664 Type 1
    Not only SINGLE PNEUMATIC
    Mounting with flange
    up to 18Kn
  • Art.665 Type 1Art.665 Type 1
    Not only SINGLE PNEUMATIC
    Mounting with flange
    up to 18Kn
  • Art.665FArt.665F
    Built-in Flange for pneumatic Zero Point.
  • Art.70P - 71PArt.70P - 71P
    Pneumatic Zero Point flange mounting, interfaced head plates
    SQUARE and RECTANGULAR PLATES
  • Art.70CP - 71CPArt.70CP - 71 CP
    Stainless steel cover for Pneumatic Zero Point interfaced head plates
  • Art.80P - 81PArt.80P - 81P
    Pneumatic Zero Point built-in mounting, interfaced head plates
    SQUARE and RECTANGULAR PLATES
  • Art.53PArt.53P
    Cast iron tombstones with built-in pneumatic Zero Point
    TOMBSTONES, 2 SIDES TOMBSTONES and ANGLES
  • Art.63Art.63
    Single spacer with Zero Point Art.665S
  • Art.64Art.64
    Double spacer with Zero Point Art.665
  • Centering pull-studs
    For clamping and positioning of the fixtures or directly the workpiece
  • Art.408Art.408

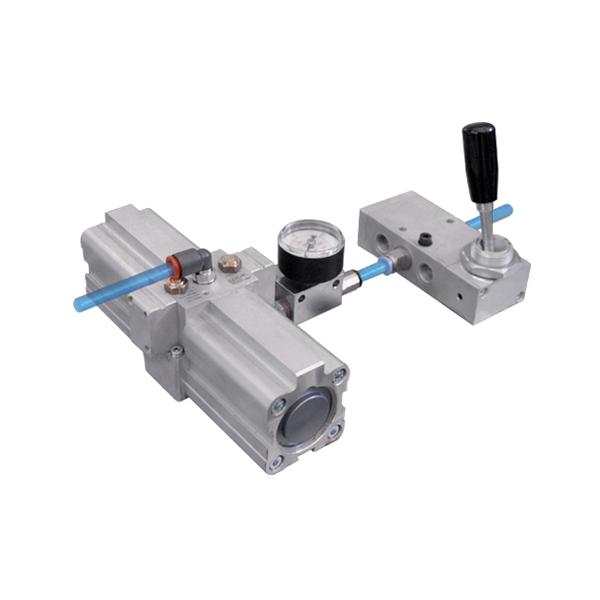

    Pressure-air-multiplier
    Possibility to use air pressure multiplier
    to get more power
