Spare Parts and Accessories Parallels / Holding Clamps / Positioning Key / Nuts / Lateral workstops / Wrenches / Loading Cells

One of the biggest point of strength of Gerardi modular system lies in the broadest assortment program of components and accessories and also in the continuous investment and development of the most advanced concepts and original solutions.

The range of items shown in the following pages is part of a modular workholding system among the widest and complete in the world.

So, any holding and clamping issue You ever have, You can solve it with Gerardi standard modular products.

The secret lies just in the modularity of the system which allows(choosing different components) a wider range of solutions.

FEATURES

Accessories 8 7 5 6 2 0 1 11 10 9 12 3 4

Art.133

Extension for fixed jaw.

Art.132

Extension for movable jaw.

Art.212

Intermediate movable jaws with double step.

Art.257

Hydraulic hand screw spindle clamping device.

Art.271

Clamping device with hydraulic cylinder for automatic applications.

Art.131

Stack type jaws fixed or movable for round workpieces horizontal clamping.

Art.138

Square stack-type jaws fixed or movable.

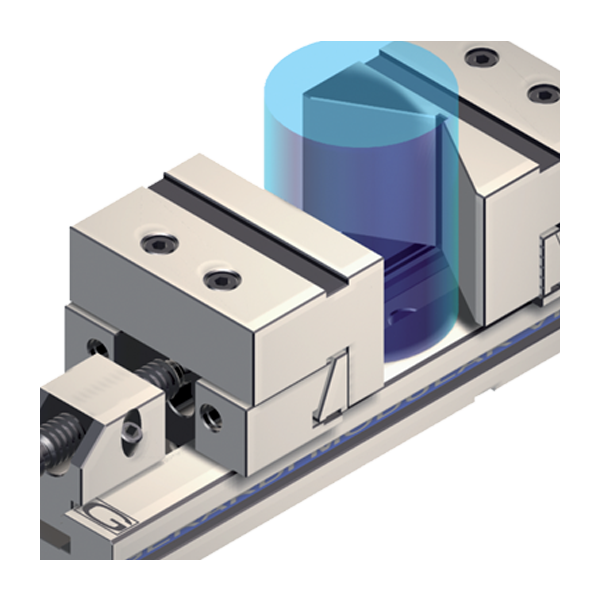

Art.150

Stack type jaws fixed or movable for round workpiece vertical clamping.

Art.210

Solid guided movable jaws for round workpieces.

Art.188

Hydraulic control solid guided movable jaws.

Art.217

Solid guided movable prismatic jaws (for plates & round workpieces clamping).

Art.146

Solid guided movable jaws with straigth plates.

Art.192

Floating movable jaws with two floating elements and spherical smooth point


VIDEO
  • Accessories - Vise Tower
  • Accessories - Pneumo Hydraulic Indipendent Clamping

RANGE
  • Art.132Art.132
    Extension for movable jaw
  • Art.133Art.133
    Extension for fixed jaw
  • Art.212Art.212
    Intermediate movable jaw
  • Art.257Art.257
    Hydraulic hand screw spindle clamping device
  • Art.258Art.258
    Mechanical clamping device manual
  • Art.271Art.271
    Clamping device with hydraulic cylinder for automatic applications
  • Art.131Art.131
    Stack type jaws fixed or movable for round workpieces horizontal clamping
  • Art.138Art.138
    Square stack-type jaws fixed or movable
  • Art.150Art.150
    Stack type jaws fixed or movable for round workpiece vertical clamping
  • Art.210Art.210
    Solid guided movable jaws for round workpieces
  • Art.190 + 4 Art.570Art.190 + 4 Art.570
    Solid guided movable jaws with adjustables set screws
  • Art.188Art.188
    Hydraulic control solid guided movable jaws
  • Art.217Art.217
    Solid guided movable prismatic jaws (for plates & round workpieces clamping)
  • Art.146Art.146
    Solid guided movable jaws with straigth plates
  • Art.120Art.120
    The solid standard fixed jaws with 5x5 mm back steps are matchable, if turned of 180°, to the prismatic movable jaw (Art. 217) to be ordered separately
  • Art.127Art.127
    Guided movable jaws built in one solid body with a pull down angle
  • Art.105Art.105
    Swivel base ( 0° ÷ 360°) is used for clamping which need rotation movements of the workholding fixture on the machine table,it allows to get quickly and with centesimal precision any angle
  • Art.2Art.2
    Vise with swivel base
