MULTITASKING VISES

Vises advanced applications on 5 axis machining centres

MULTITASKING range of vises has been specially conceived for 5-axis machines. Working on 5 sides of the workpiece, it allows to optimize the machining cycle at its best.

Thanks to the compact design, this kind of vise can be installed on all machining centres.

The use of GRIP jaws is strongly recommended with Multitasking vise.

  • No Wear
  • Quick clamping
  • Modularity & Versatility
  • Highest Accuracies within 0,02 mm
  • Rigidity & Safety
  • Space saving Design & Handy
FEATURES

Multitasking Vise 0 2 3 1

HIGHEST ACCURACY

in positioning and alignement (± 0,02 mm) thanks to the ground rack teeth on both the base and the fixed jaws.

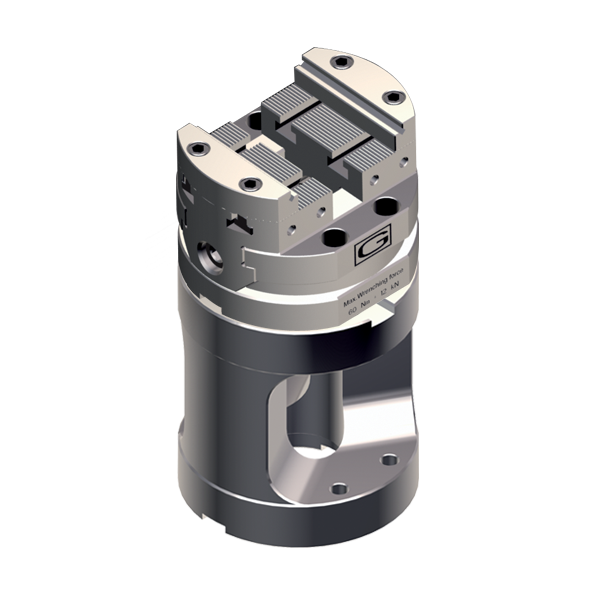

SPACER FOR MULTITASKING VISES

Compatible with Multitasking vise, they allow to machine those parts usually hard to reach.
These spacers are conceived for the positioning and removal of the work-piece with the vise fixed on the machine.

SELF-CENTERING OR ECCENTRIC VISE TYPE 1&2

Type 1 jaw width 74 mm maximum spread 74 mm.
Type 2 jaw width 99 mm maximum spread 104 mm.

SELF-CENTERING OR ECCENTRIC VISE TYPE 3

Art. 640 Tipo 3x166 jaw width 138 mm maximum spread 111 mm.
Art. 640 Tipo 3x266 jaw width 138 mm maximum spread 211 mm.


Specifications
  • Type 1Type 1
    Torque wrench BETA 610/10X
  • Type 2Type 2
    Torque wrench BETA 610/10X
  • Type 3Type 3
    Torque wrench BETA 610/10X

VIDEOS

ACCESSORIES
  • Art.645BArt.645B
    Soft jaw
  • Art.645CArt.645C
    Smooth jaw
  • Art.645DArt.645D
    Serrated jaw
  • Art.645EArt.645E
    Step jaw
  • Art.645FArt.645F
    Prismatic jaw
  • Art.645TArt.645T
    GRIP jaw
  • Art.655JArt.655J
    Prismatic solid jaws (1 pair)
  • Art.641HArt.641H
    Simple spacer Type 1&2
  • Art.641HArt.641H
    Simple spacer Type 3x166
  • Art.641HArt.641H
    Simple spacer Type 3x266
