MULTIFLEX VISES

The most versatile vise for flexible clamping of multiple workpieces of various sizes.

The MULTIFLEX series vises are a totally new concept of modular clamping system able to maximize the machine table capacity and thus to increase its productivity.

This system is designated for clamping several workpieces at the same time on the machine tool table, thus reducing tool changeover times.

FEATURES

Multiflex Vise 0 0 0 0 2 2 2

HIGHEST ACCURACY

in positioning and alignement (± 0,02 mm) thanks to the ground rack teeth on both the base and the fixed jaws.

VERTICAL SET UP

through spacers, tombstones or vise-towers.
MULTIFLEX vises can be vertically assembled linked each other or clamped to specific workholding structures.

CLAMPING ACCURACY AND GUIDED PULL DOWN LAW ACTION

thanks to the ground comb-teeth even between the fixed and movable jaws.


Specifications
  • Type 1Type 1
    Fixed jaw and positioning wedge: torque 40 Nm
  • Type 2Type 2
    Fixed jaw and positioning wedge: torque 120 Nm
  • Type 3Type 3
    Fixed jaw and positioning wedge: torque 250 Nm

VIDEOS

ACCESSORIES
  • Art.604Art.604
    Fixed jaw, 1 side smooth 1 side serrated
  • Art.605Art.605
    Fixed and movable smooth jaw
  • Art.605SArt.605S
    Fixed and movable serrated jaw
  • Art.605LArt.605L
    “V” clamping wedge
  • Art.615Art.615
    Jaw with bigger positioning wedge (increased with respect to standard dimensions)
  • Art.609Art.609
    Fixed and moving jaw with step
  • Art.609TArt.609T
    Fixed and moving jaw with GRIP jaw-plates for strongest clamping
  • Art.604GArt.604G
    Fixed smooth jaw both sides
  • Art.613Art.613
    Double clamping movable jaw
  • Art.610BArt.610B
    Soft jaw plate
  • Art.610CArt.610C
    Smooth jaw plate

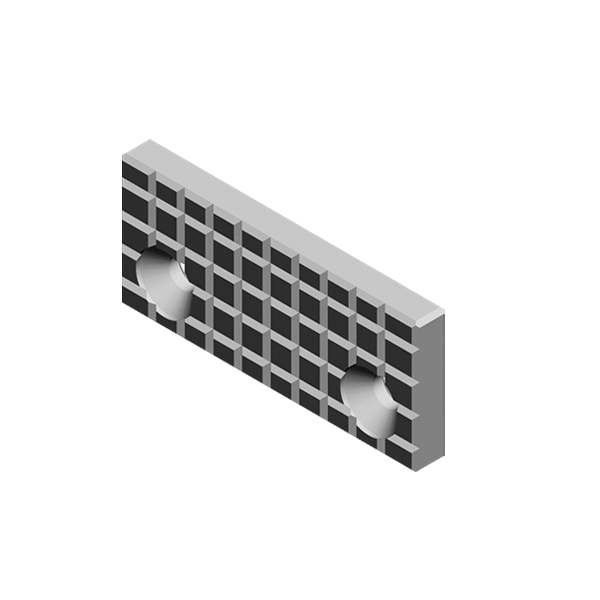

  • Art.610DArt.610D
    Serrated jaw plate
  • Art.610EArt.610E
    Parallel jaw plate
  • Art.610FArt.610F
    Prismatic jaw plate
  • Art.616Art.616
    Pair of straight parallels magnetic plates
  • Art.617Art.617
    Magnetic solid step jaw plate
  • Art.618Art.618
    Intermediate movable jaw
  • Art.604PBArt.604PB
    Fixed start jaw plate
