Driven Tools

Driven Tools for CNC lathes

Driven tools for CNC turning centres allows milling, drilling and tapping operations on the lathes without additional parts handling. Also in this case Gerardi can supply a wide range of types in order to equip the CNC lathes and turrets of the most popular builders on the market with an unbeatable price/quality ratio.

Range of driven tools types

The range of standard types of driven tools are designed for assembling on the following brands of CNC lathes or Turrets builders Range of Driven tools types.

VDI lathes turrets:

CNC lathes:

  • Biglia
  • DMG Mori
  • Doosan
  • Haas
  • Mazak
  • Myano
  • Nakamura
  • Okuma
  • Takisawa
  • Tsugami

Click and discover more than 1.000 types avalaible

FEATURES

Driven Tools 0 2 1 0 4 3 5

MAIN BODY

Re-designed main body to improve rigidity and reduce vibration.

Specially treated corrosion resistant steel body

INTERNAL COOLANT

All the driven tools, can be supplied with coolant feed through the spindle with rotating distributor up to 70bar

COUPLING

Interchangeable couplings for the different Haas turret

GLEASON GEARS

Gleason computer based calculations for the Gleason cut spiral bevel drive gears with ground teeth in order to guarantee a bigger torque.

BEARINGS

Angular contact preloaded ball bearings of precision class ABEC 9.

100% MADE IN ITALY

Gerardi Evolution angle heads have been designed and are manufactured in Italy.

They are covered by 2 years warranty.

OPTIONS

HIGH SPEED

There is also the possibility of speed increaser from 2 to 4 times thus adapting the Rpm of the turret drive to the speed of today's cutting tools. The epicyclic speed increaser system (a system of satellite gears) is self contained in the standard head overall dimensions and guarantees the same standards of quality and reliability.

MULTIPLE OUTPUTS

All the driven tools, with the exception of those with adjustable angle, can be supplied with double or multiple output even of the same dimension. Multiple outputs can be opposite or with the same direction.

TAPPING

For tapping operations all driven tools can be equipped with axially compensated collets ET-1 interchangeble with the standard ER collets according the international standard DIN 6499.They allow the tap an axial compensation from 7 to 13 mm according to their size in order to compensate any feed error and the inversion of the rotation of direction.


Specifications
  • 1 - OD MOUNTING1 - OD MOUNTING
    RADIAL driven tool for axial machining
  • 2 - OD MOUNTING2 - OD MOUNTING
    AXIAL driven tools for radial machining
  • 3 - FACE MOUNTING3 - FACE MOUNTING
    AXIAL driven tools for axial machining
  • 3 - FACE MOUNTING3 - FACE MOUNTING
    RADIAL driven tools for radial machining
Od mount of radial driven tools for axial machining
  • A - OD mount of radial driven tools on the turret disk positioned up and RIGHT compared to the machine spindle.
  • B - OD mount of radial driven tools on the turret disk positioned up and LEFT compared to the machine spindle.
  • C - OD mount of radial driven tools on the turret disk positioned down and RIGHT compared to the machine spindle.
  • D - OD mount of radial driven tools on the turret disk positioned down and LEFT positioning compared to the machine spindle.
Face mount of radial driven tools for radial machining
  • A - Face mount of radial driven tools on the turret disk positioned up and RIGHT compared to the machine spindle.
  • B - Face mount of radial driven tools on the turret disk positioned up and LEFT compared to the machine spindle.
  • C - Face mount of radial driven tools on the turret disk positioned down and RIGHT compared to the machine spindle.
  • D - Face mount of radial driven tools on the turret disk positioned down and LEFT compared to the machine spindle.

VIDEO
  • Driven Tool - Heavy Cutting tool test

ACCESSORIES
  • ColletsCollets
    ER-DIN 6499 / ET1
  • NutsNuts
    ER-DIN 6499 / ET1
  • WrenchesWrenches
    ES (Exagonal) - STD (Standard)

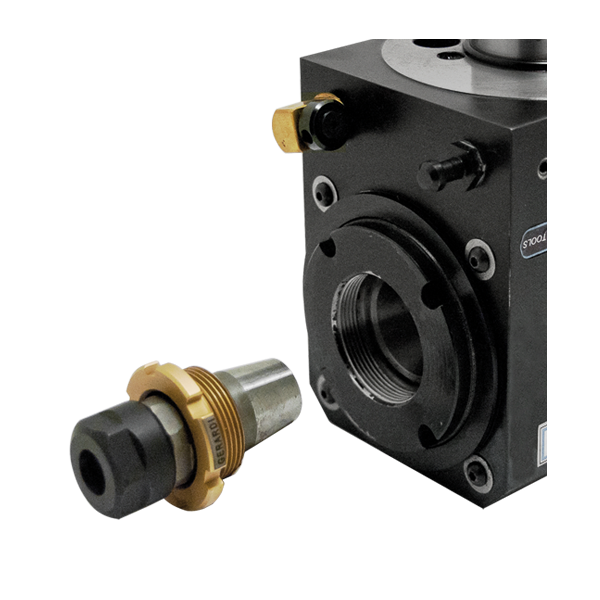

  • Quick change systemQuick change system
    For internal nuts with external thread.
  • Quick change systemQuick change system
    For external nuts with internal thread
